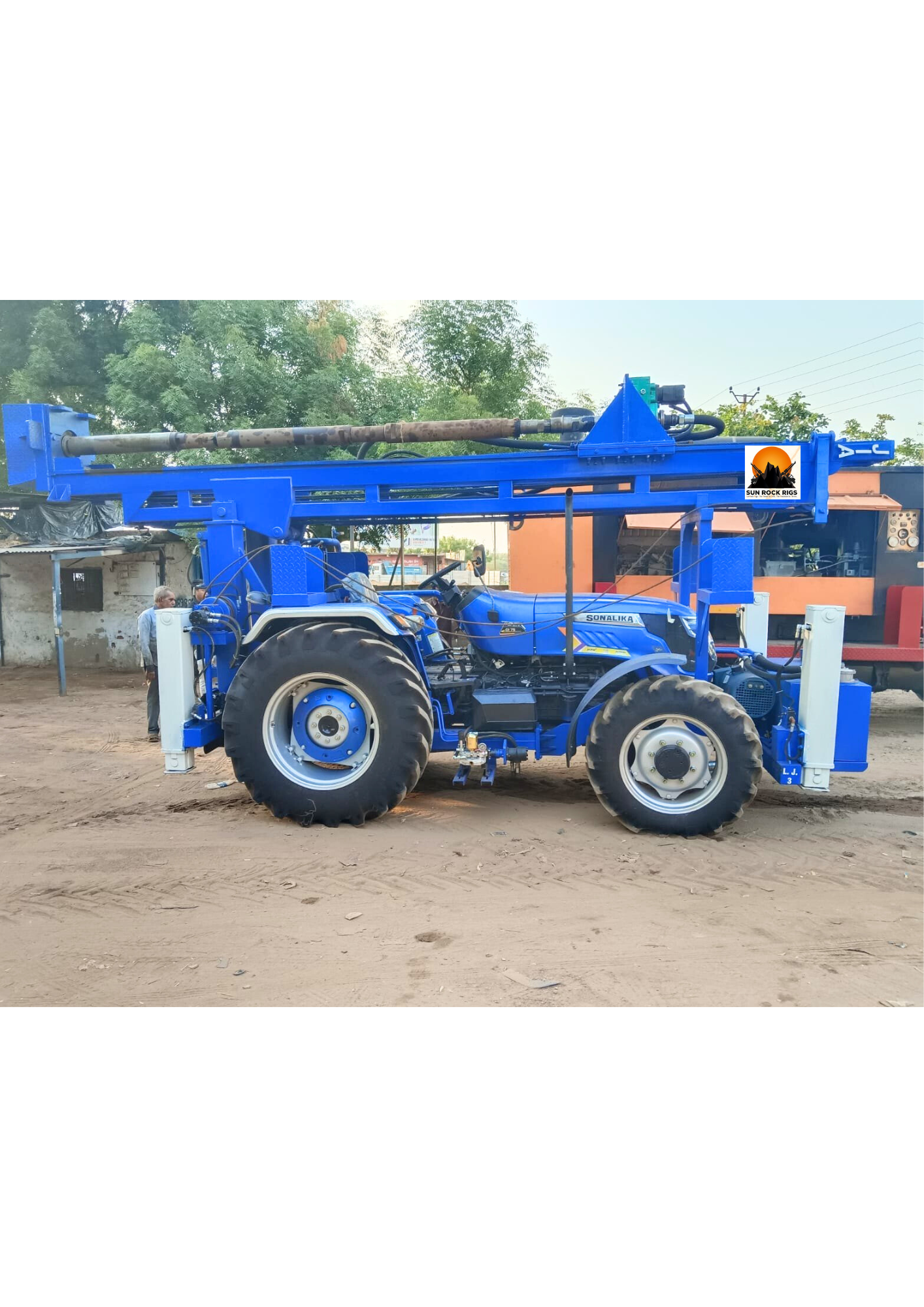

Sun Rock Bull T 200 is a compact DTH cum Rotary drilling rig with 4½"–8" drilling diameter, 200m depth capacity, 5,042 kgf pull-down force, 160 kg·m torque, 0–100 RPM, and operates with a 600cfm/200psi compressor.
| Application | Domestic water wells,Piling,Exploration,Solar |
|---|---|
| Drilling Method | DTH / Rotary |
| Flushing Medium | Air / water |
| Drilling Depth | Water well Drilling : 200 m @ 165 mm (6 ½") diameter , Pile Drilling : 30 m @ 1200 mm direct mud circulation method |
| Hole Diameter | Water well Drilling : 165 mm (6 ½"),Pile Drilling : 1200 mm |
| Rod Handling Method | Single rod changer |
| Rotary Head Type | Single rod changerTop drive rotary head |
| Rod Break out method | 5000 mm |
| Engine - Model | Tractor Engine with PTO option - 75 hp / 90 hp |
| Hydraulic system | Max. system pressure : 2750 psi,Hydraulic tank capacity: 450 litres |
| Drilling Dia | 4 1/2"-8" |
|---|---|
| Drilling Depth | 200MTRS |
| Pull Up Force | 5042kgf |
| Pull Down Force | 3090kgf |
| Rotary Drive and RPM | 160kgs mtr-torque,0-100rpm |
| Compressor | 600cfm/200psi |
| Drilling operation | DTH cum Rotary Drilling |
